◊Design verified, type tested, arc fault tested and seismic tested low voltage system up to 6300 A

◊Factory assembled switchgear system in modular construction

◊All types extendable by standardized dimensions

◊Sturdy, high end design for industrial use with minimized types of system parts, for maximum liability, stainless chrome steel frame as standard

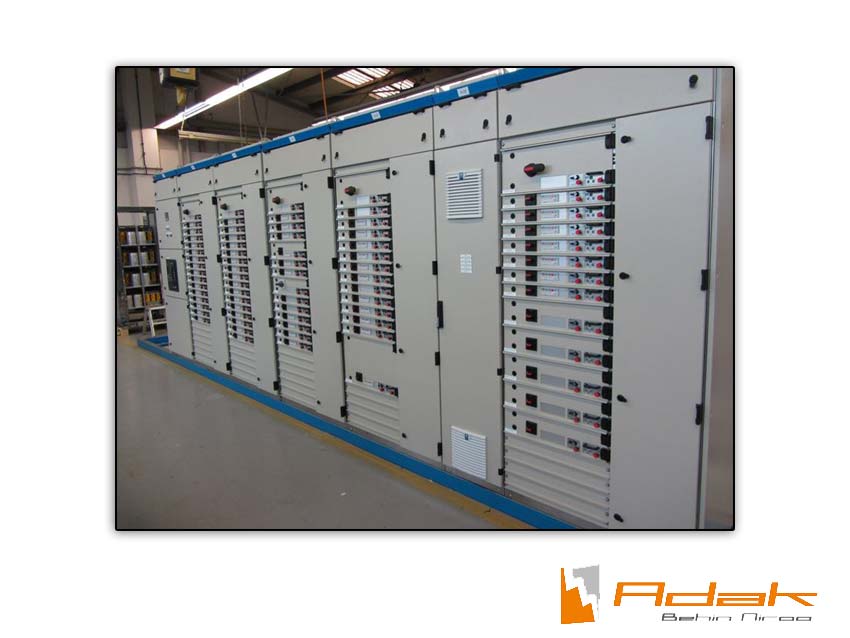

The low voltage distribution MODUL K SYSTEM in either modular fixed mounted, semi-withdrawable, withdrawable or Motor-Control-Center (MCC) design is used to provide safe energy distribution in power plants, heavy industries, chemical plants and in building facilities. The system can also be used for power factor correction.

◊Flexibility for special custom-made solutions

◊Verification of design and type test
  ♦IEC 61439-2
  ♦DIN EN 61439-1/2 (VDE 0660 part 600 1/2)
  ♦DIN EN 60439-1 (VDE 0660 part 500)

◊Internal arc fault withstand test acc. IEC/TR 61641 resp. DIN EN 60439-1, suppl. 2

◊Seismic withstand test ( earth quake test)
  ♦IEC 60068-2-6/-3-3 /- 2-59
  ♦TA34-PB-295/12-01

◊Internal separation up to Form 4b
  ♦Circuit breaker cubicle in modular construction
  ♦Outgoing cubicle for fixed mounted components (e.g. FC)

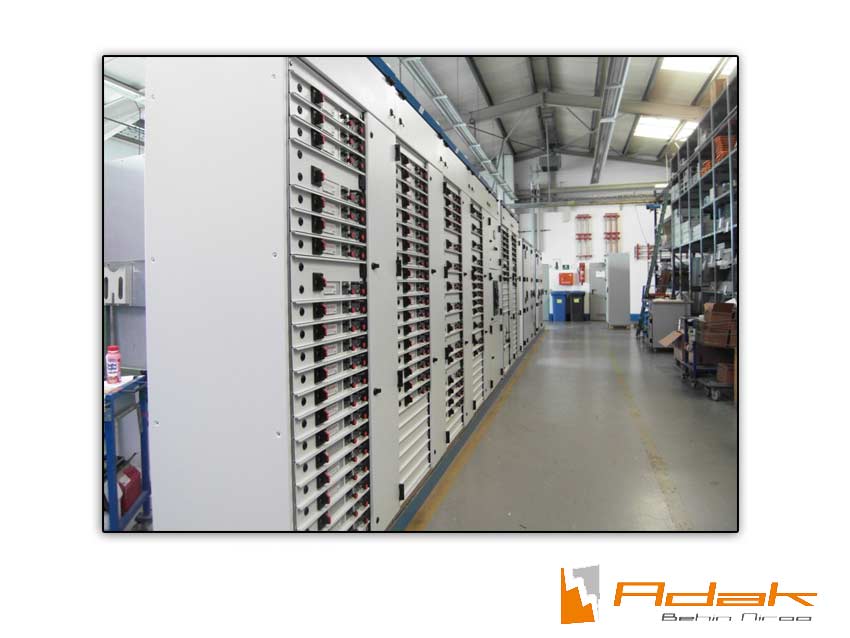

  ♦MCC cubicles for fully withdrawable feeder modules

◊Additional safety features as option
  ♦Fast arc fault distinguisher Arc-K-System (within1,2ms)
  ♦Smoke detectors, Surge arresters
  ♦Main busbar insulation

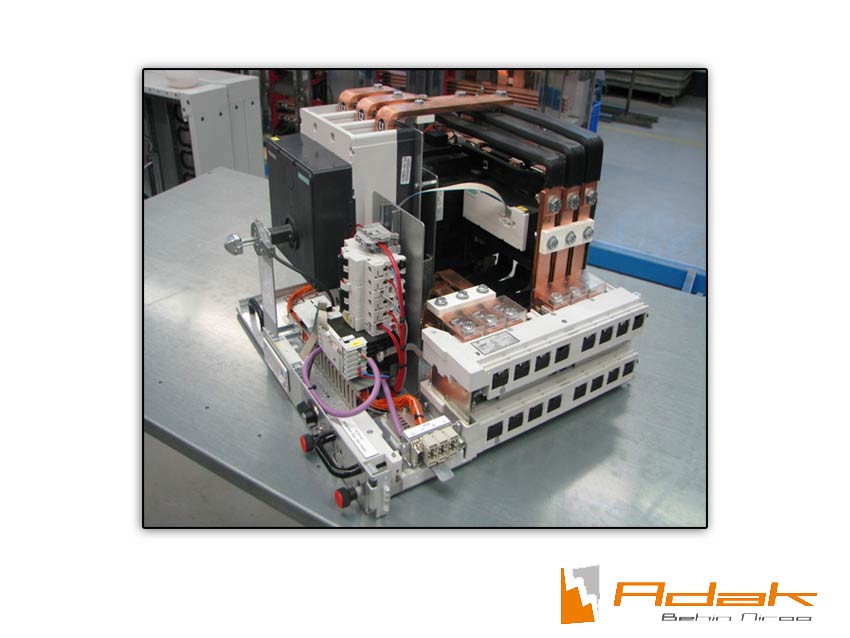

◊Mechanical interlocked drawer operation with closed door, patented fully encapsulated contact mechanism
