The Pivot Master Joint is designed to provide a superior solution for floating roof drainage over mechanical swivel joints and flexible hoses. Composite hoses are designed with inner and outer stainless steel wire and multiple inner layers. Stainless steel wires maintain the strength of the hose when exposed to internal or external pressures. The use of different layers prevents the penetration of products through the hose and creates a barrier 100% resistant to aromatics. The composite hose is fastened to two reinforced steel side plates (galvanized steel or stainless steel). These side plates are joined by a stainless steel pivot pin that uses stainless steel bushings and spacers to eliminate binding and ensure flexibility. Pivot Master Joint applications include, but are not limited to, floating roof drain systems, floating suction systems, and floating skimmer systems. Flexible Drain Hose: A device for removing water collected at the bottom of the tank and product residue when draining the tank. It is also used for drainage. The accumulated water on the floating roofs of Kavandag Sabz Kavir Company, using its proven technology, completes all stages, including engineering calculations and determining the number of drainage systems required for each tank, for design, engineering, construction and installation. Place does. FLEXIBLE BEND MASTER: This drain system consists of: regular lengths of rigid carbon steel tubing and several flexible neutral joints specifically designed for underwater service and operational drainage needs. Pivot Master: The pivot master consists of a flexible composite hose that is fixed to a stainless steel frame using fittings. Pivot Master components are compatible with 100% aromatic environments and have a high design pressure tolerance.

Pivot Master Joint was designed to provide a superior solution to floating roof drainage over mechanical swivel joints and flexible hoses. The composite hose is designed with inner and outer stainless steel wire helixes and multiple inner layers. The stainless-steel wire helixes maintain the hose rigidity when subjected to internal or external pressures. Utilizing various layers prevents permeation of products through the hose along with providing a 100% aromatic resistant barrier. The composite hose is secured within two reinforced steel side plates (galvanized steel or stainless steel).

These side plates are joined by a stainless-steel pivotal pin that uses stainless steel bushings and spacers to eliminate binding and assure flexibility. Applications of the Pivot Master Joint include, but are not limited to, Floating Roof Drain Systems, Floating Suctions Systems and Floating Skimmer Systems.

Flexible Drain Hose:
Device to remove water collecting at the tank bottom, and product remains when emptying the tank. Also used for draining
accumulated water on floating roofs.
Kavandgan Sabz Kavir Co., using its proven technology, undertakes all stages including engineering calculations and determining the required number of drain system for each tank to design, engineering, construction and installation on site.

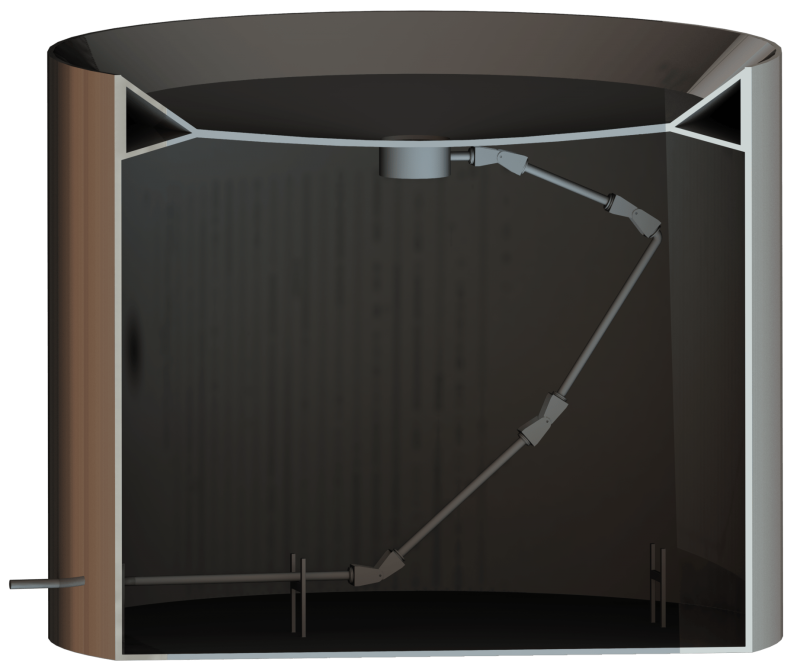

Flexible bend Master:
This evacuation system includes: Sturdy pipes of the usual length of carbon steel and several flexible neutral connections are specifically designed for underwater services and operational drainage needs.

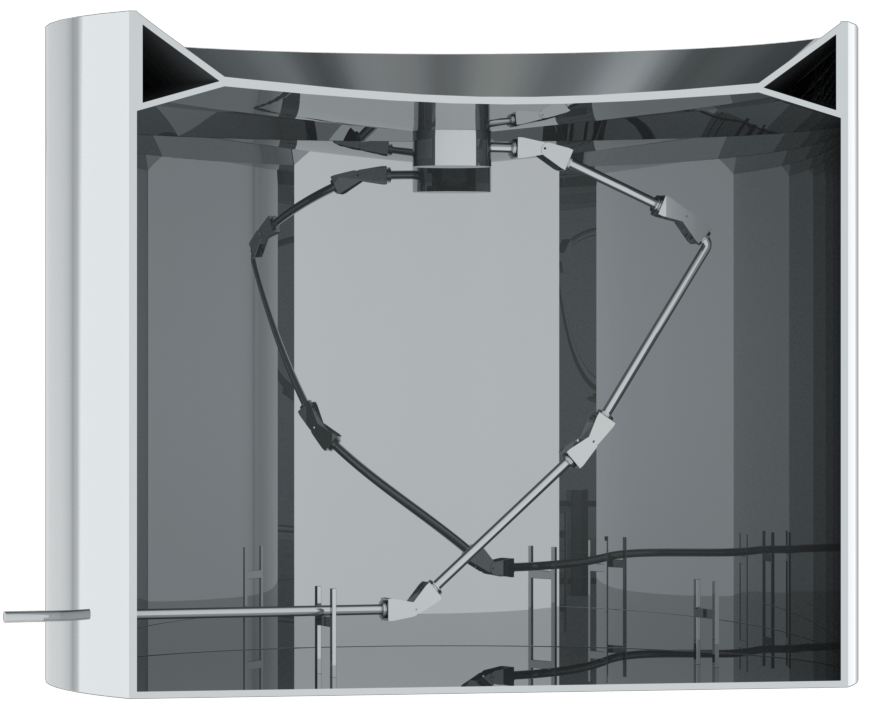

Pivot Master:
pivot master consists of a flexible composite hose that is fixed using fittings in a stainless-steel frame. Pivot master components are compatible with 100% aromatic environments and have high design pressure tolerance.
