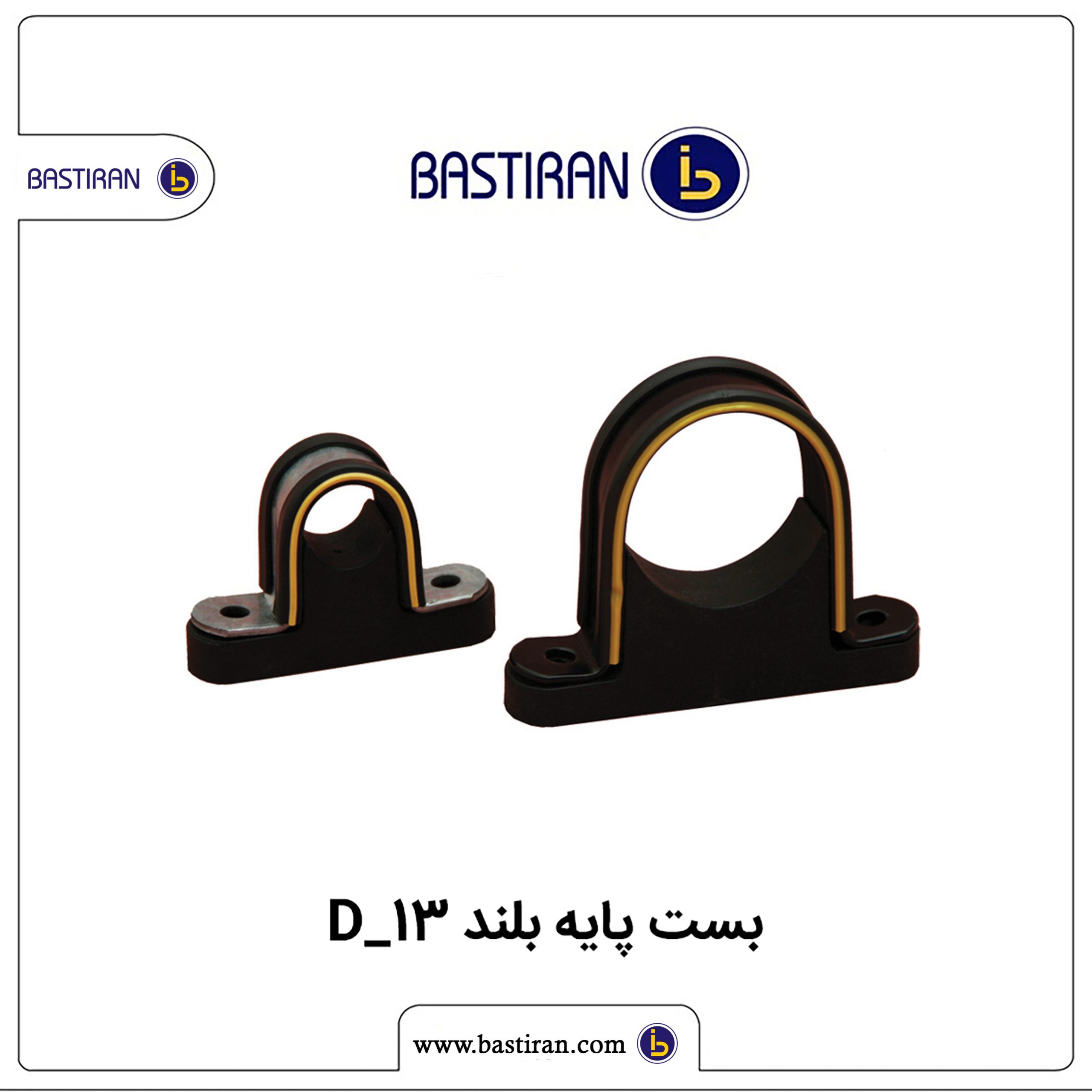

The normal long base clamp (Pipe Clamp without metal base) secures the pipe at the installation site by two screws. This product has a polyethylene base with a higher height than the similar product with code C-12, E-14, F-15 (ordinary fastener), which is to create a greater distance between the pipe and the installation site. The regular long base clamp is for installing metal pipes, polyethylene, copper, stainless steel, cable, etc. in construction and facility industries.

Normal long base clamp (Pipe Clamp without metal base) made of iron sheet (CS-ST37) with black electrostatic coating, without coating, with polyethylene base (temperature tolerance in the range of -30 to +150 degrees Celsius) ) and is supplied in bulk without bolts and nuts. The wall bracket with two screws on the long base can be made of fabric galvanized sheet, alloy iron sheets by applying different types of coatings such as cold galvanized, hot galvanized, electrostatic colors (gray, black, white, etc.), cadmium, teflon (PTFE). ), zinc rich epoxy paint, etc., produced stainless steel sheets (grade 304, grade 316, etc.) with PVC, EPDM coating or without coating.

The normal long base clamp (pipe clamp without metal base, Pipe Clamp without metal base) is available in the market with a reasonable price range compared to existing clamps.

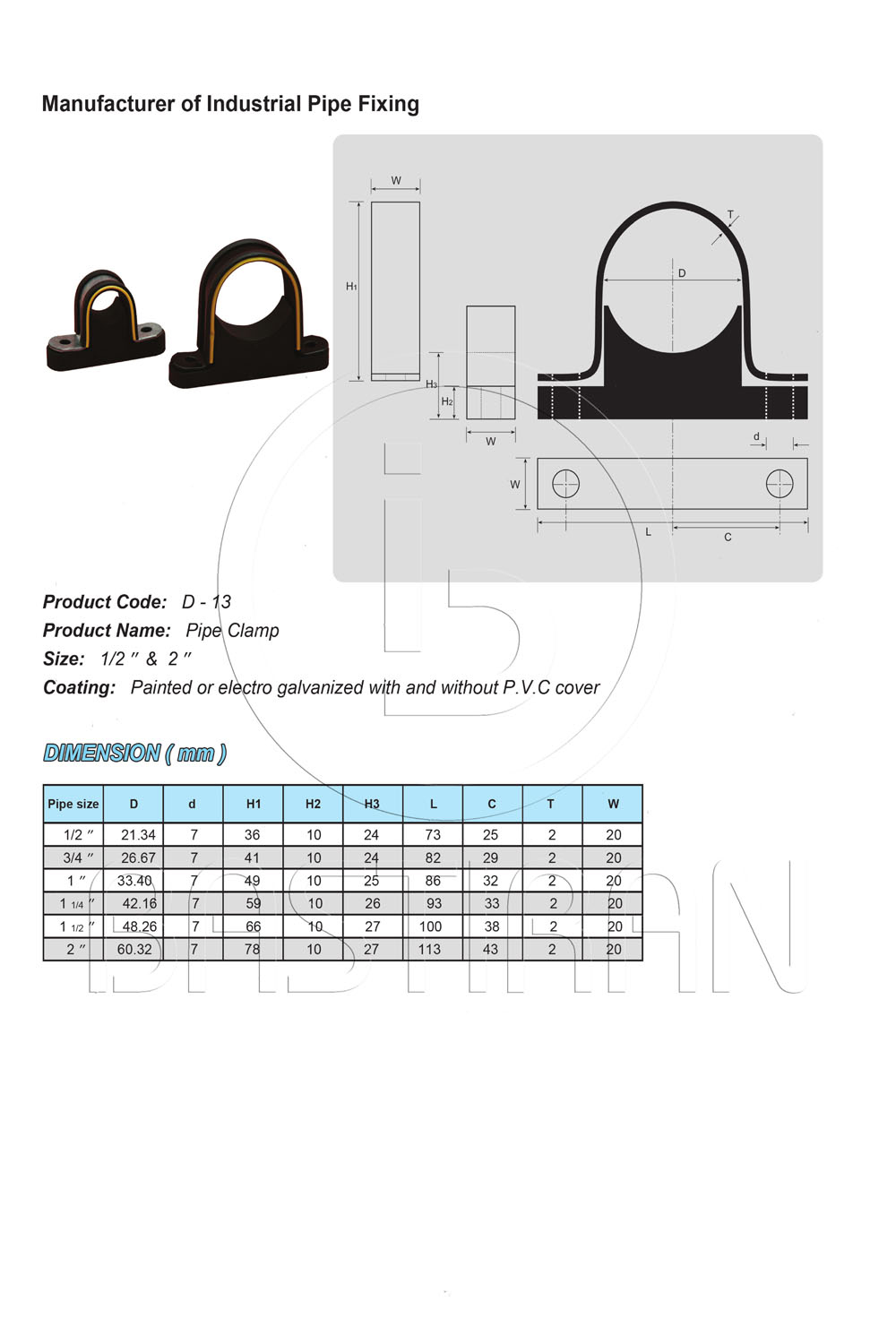

Specifications:
It is produced in sizes of 1/2 to 2 inches (22 to 63 mm) from a sheet with a thickness of 2 mm and a width of 20 mm.
The required screw is M6 size.
It does not have screws on the sides.
It has a polyethylene base.
Packaging: Carton
Size:
The normal long base fastener is produced from 1/2 to 2 inches.
