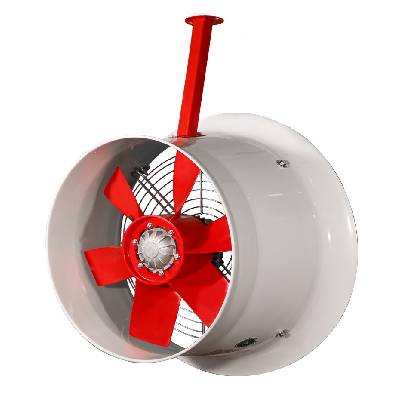

Alvand is the only (new) vortex circulation fan that has a lower weight due to its aluminum body, which does not put pressure on the structure and does not rust. Also, due to the aerodynamic design, it has 20% more ventilation with no need for adjustment. More throwing and easy installation of Tez is one of the best features of this product.

Circulating fan is used to create air circulation in greenhouse halls, poultry houses and industrial workshops. The main job of the circulating fan is to equalize the temperature, humidity, oxygen and carbon dioxide in the halls. Alvand Industrial Group has designed this circuit with 64 inlet opening and 52 outlet opening, which has a much higher efficiency than older models.

Characteristics of vortex circulation
Honeycomb frame for more strength
Improve air circulation
Easy installation and maintenance
Has a fixed support base
Stainless aluminum body
Light aluminum body
Air throw more than 25 meters
18 months warranty
10 years of after-sales service and parts supply



Technical specifications of vortex circulation fan
 Number of blades: 6
Propeller diameter (cm): 50
Single-phase motor power (kW): 300
Three-phase motor power (kW): 295
Single-phase current intensity (amps): 1.5
Three-phase current intensity (amps): 0.65
Single-phase aeration volume (cubic meters per hour): 8000
Three-phase aeration volume (cubic meters per hour): 8500
