Specifications:
Body material: cast iron/carbon steel/stainless steel
Disc: stainless steel / carbon steel
Sealing and seat: EPDM
Bushing: PTFE
Wafer connection type
Connection: ANSI Class150 flange, PN10 flange, PN16 flange
GN 10/16
Pressure measurement:
PN16
Fluid working temperature (-) 20 degrees Celsius to (+) 120 degrees Celsius
Operator: manual lever
Lever: Aluminum
Description

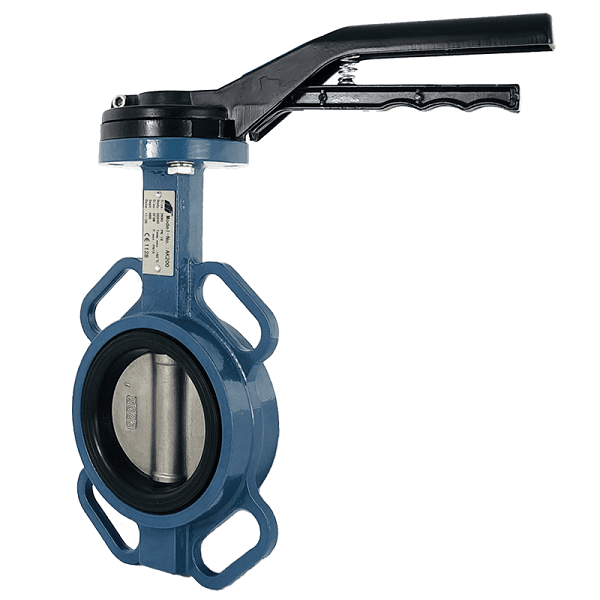

Lever wafer butterfly valve PN16
If you want to check the purchase price of PN16 normal or steel lever wafer butterfly valve, you can see it in this section because we provide you with valuable information about this product, including its advantages and disadvantages and its structure in general. Choose the butterfly valve you want with more knowledge.
Wafer butterfly valve structure
The wafer-style butterfly valve is a toroidal body with multiple center holes without impact. Some types of wafers have two and some have four holes. The flange screws are inserted through the screw holes of the two pipe flanges and the center holes of the butterfly valve.
These valves have a flap-like disc (wafer) that is used to allow and restrict fluid flow. This disc opens in one direction only and closes under reverse pressure to close the valve against opposing fluid flow. Wafer butterfly valves are used for installation at the end of the pipeline.
Lever butterfly valve
Lever butterfly valves require a manual operator, they are generally called manual butterfly valves. Hand levers are common for small butterfly valves. The handle allows the valve to be locked in the open, semi-open or closed position. Advanced butterfly valves have long stems that allow remote operation of the valve when it is underground or in a pit.
A lever-operated butterfly valve directly drives the disc, which opens and closes quickly but is cumbersome. A butterfly valve with a handwheel drives the disc through a handwheel that opens and closes slowly but saves energy. Therefore, when the pressure in the pipeline is high, it will be very troublesome to use the lever butterfly valve.
