Technical features of the WIKA UPT-2X transmitter
In two types of materials, stainless steel and plastic
Measure and display pressure by load
Measurement of gauge, absolute and vacuum pressure
Output 4...20 mA
HART Protocol
Applications of WIKA UPT-2X transmitter
Control and processing technology
Factories and machine industries
Pharmaceutical and health industries
Food and beverage industry
Chemical and petrochemical industries
Description

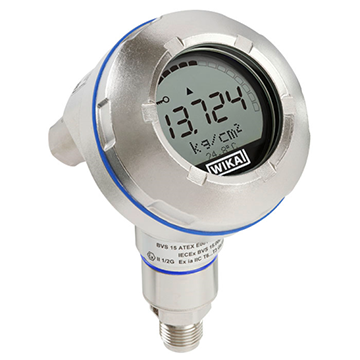

Vica UPT-2X pressure transmitter with display
Vika UPT-2X pressure transmitters with display are designed to meet the needs of industries with intelligent pressure sensors.

UPT-2X model transmitter is designed in two models UPT-20 and UPT-21. The difference of the UPT-21 model transmitter is in the flash diaphragm considered in its design.

Due to the temperature maintenance feature, the transmitter can be used for a wide range of applications.

The material used in the measuring part of this sensor is stainless steel or high-quality oligiloy material.

The body of this transmitter model can rotate up to 330 degrees. Also, the LC display of this model can be installed in different positions. The screen can be rotated up to 90 degrees.

The LC display screen is suitable for any installation position and the values ​​are easily read even up to a distance of 5 meters.
HART protocol
One of the important features of this transmitter is the HART protocol. Due to the good design of this transmitter can be for

Applications with analog technique
Modern systems with HART protocol feature
used.

Due to the modularity of the operator and display or the HART protocol, this transmitter can be used directly or through a process control system.
Technical characteristics
Measurement range
This transmitter can be used to measure gauge pressure and vacuum pressure:

The pressure range of the gauge is:

0 ... 0.4 - 0 ... 1.6 - 0 ... 6 - 0 ... 16 - 0 ... 40 - 0 ... 100 - 0 ... 250 - 0 ... 600 - 0 ... 1,000

And the range of absolute pressures are:

0 ... 1.6 - 0 ... 6 - 0 ... 16 - 0 ... 40

Also, the range of vacuum pressures that can be measured are:

-1 ... 0 -0.2 ... +0.2 -1 ... +0.6 -1 ... +5 -1 ... +15 -1 ... +40

One of the important features of this transmitter is turndown. Using this feature, we can adjust the desired range.

For pressures higher than 600 bar, UPT-20 model should be used.
Output signal
This pressure sensor produces current and output of 4-20 mA.

supply voltage
DC 12 ... 36 V

This transmitter can be used for indoor or outdoor environments.

Diaphragm flood
UPT-20 model pressure sensor with sealing diaphragm can be installed in industries with harsh conditions.

Therefore, this model can also be used for high temperatures.
