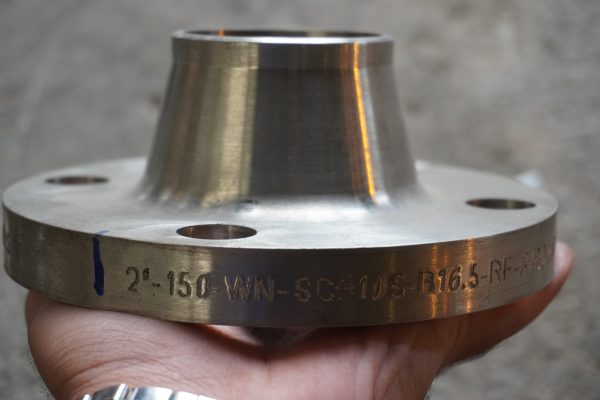

A 2 inch Class 150 weld neck flange refers to a specific type of flange with the following characteristics:
1. Size: The flange has a nominal size of 2 inch, which refers to the internal diameter of the pipe it is designed to fit.
2. Class: The class designation indicates the pressure rating of the flange. In this case, the flange is classified as Class 150.
3. Type: The flange is a weld neck flange, which means it has a long, tapered hub with a circular bore that matches the pipe’s internal diameter. The flange is welded to the pipe, providing a strong and rigid connection.
Weld neck flanges are known for their high strength and reliability, making them suitable for demanding and high-pressure applications, such as in the oil and gas industry or chemical plants.
It’s important to ensure that the selected flange matches the specific requirements of your piping system and meets relevant standards and specifications. Consulting with a qualified engineer or referring to industry standards, such as ASME B16.5, can help in selecting the appropriate flange.
