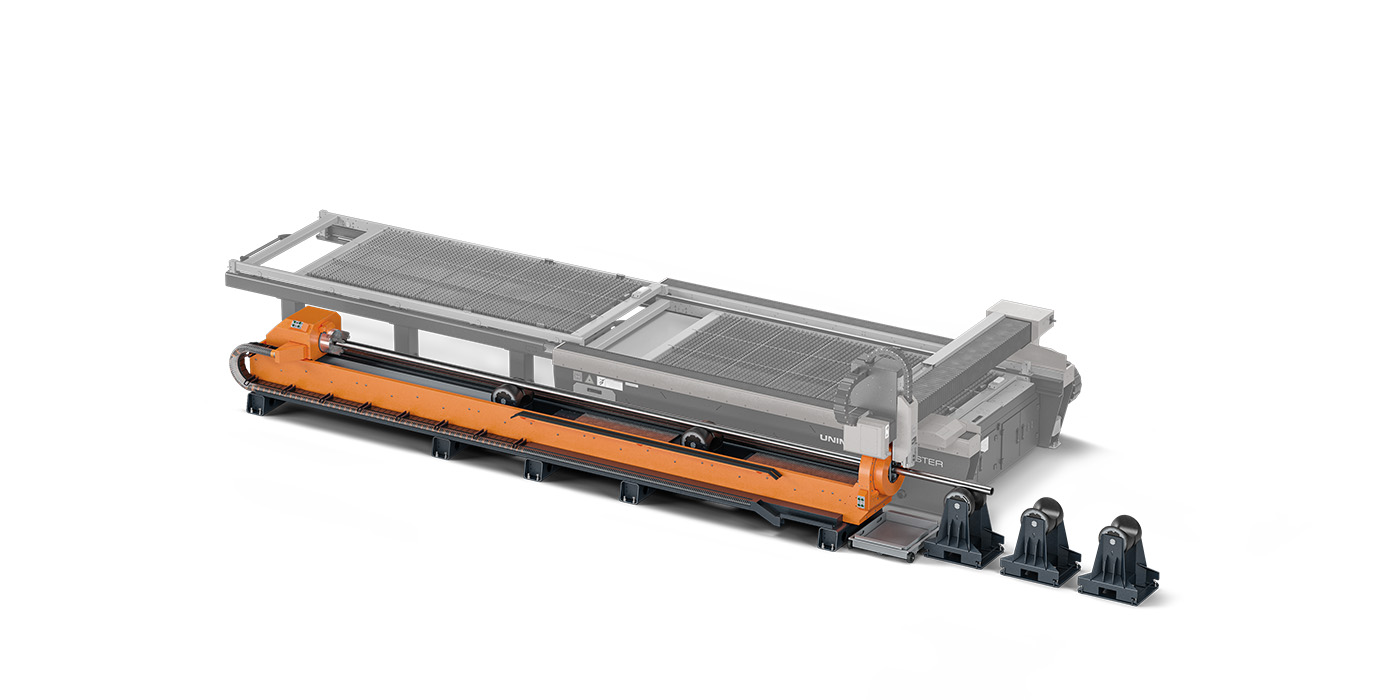

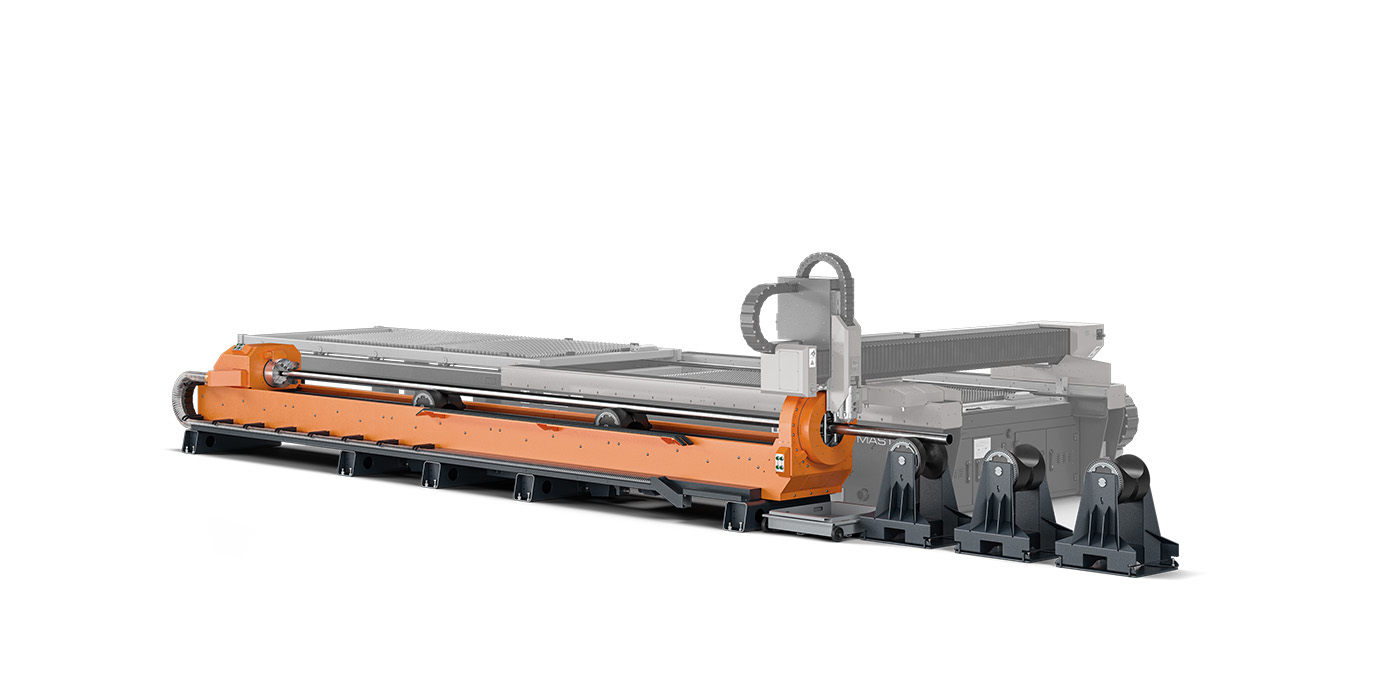

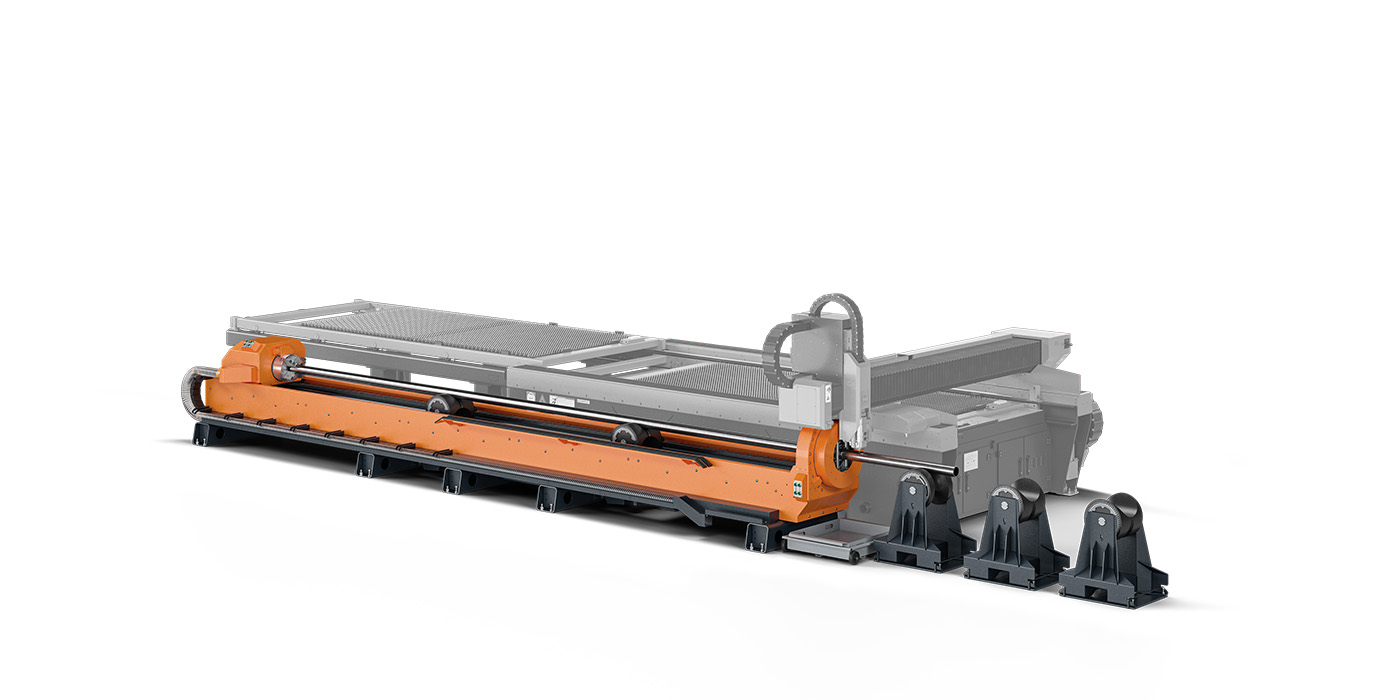

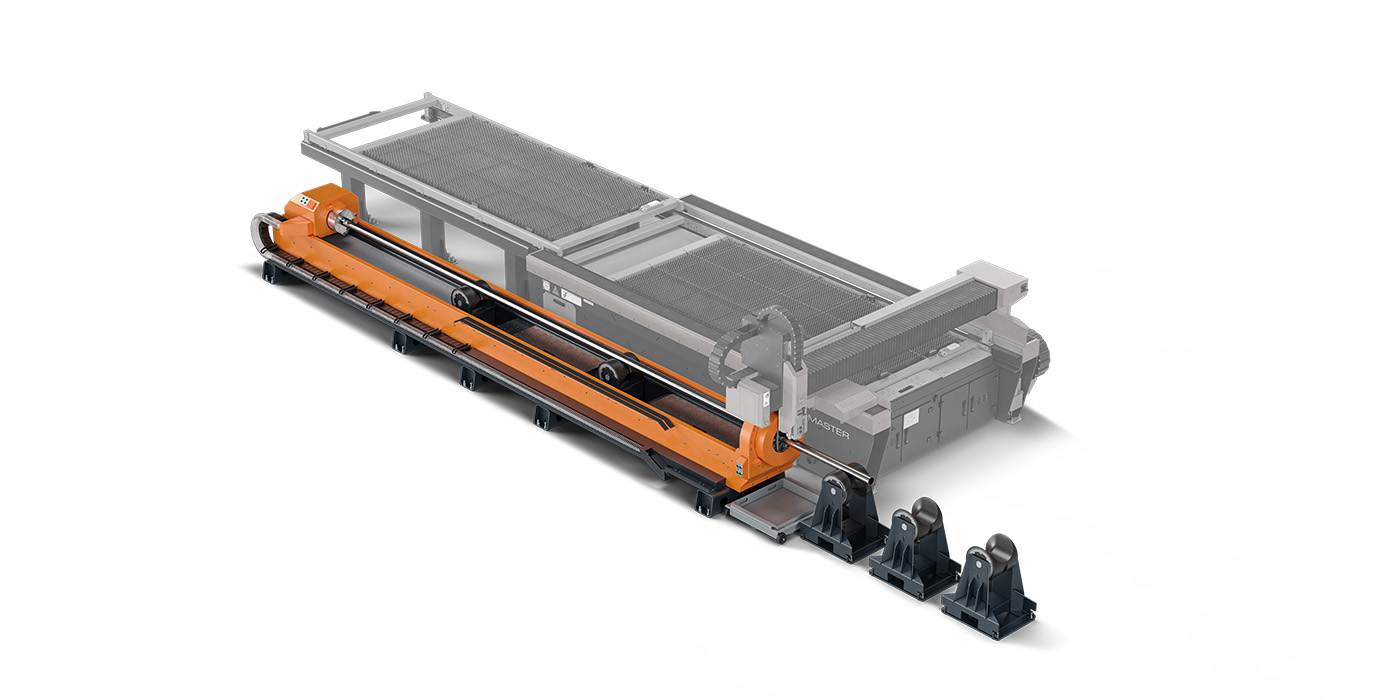

Module for round tube cutting TCU-Professional is combined with laser cutting machines LC Standart, LC Master, LC Professional M2 and allows for cutting tubes along the length, engraving, as well as cutting out holes of any complexity and grooves.

Unimach machinery is manufactured in St Petersburg using our own components.

TCU-Professional M2 Features

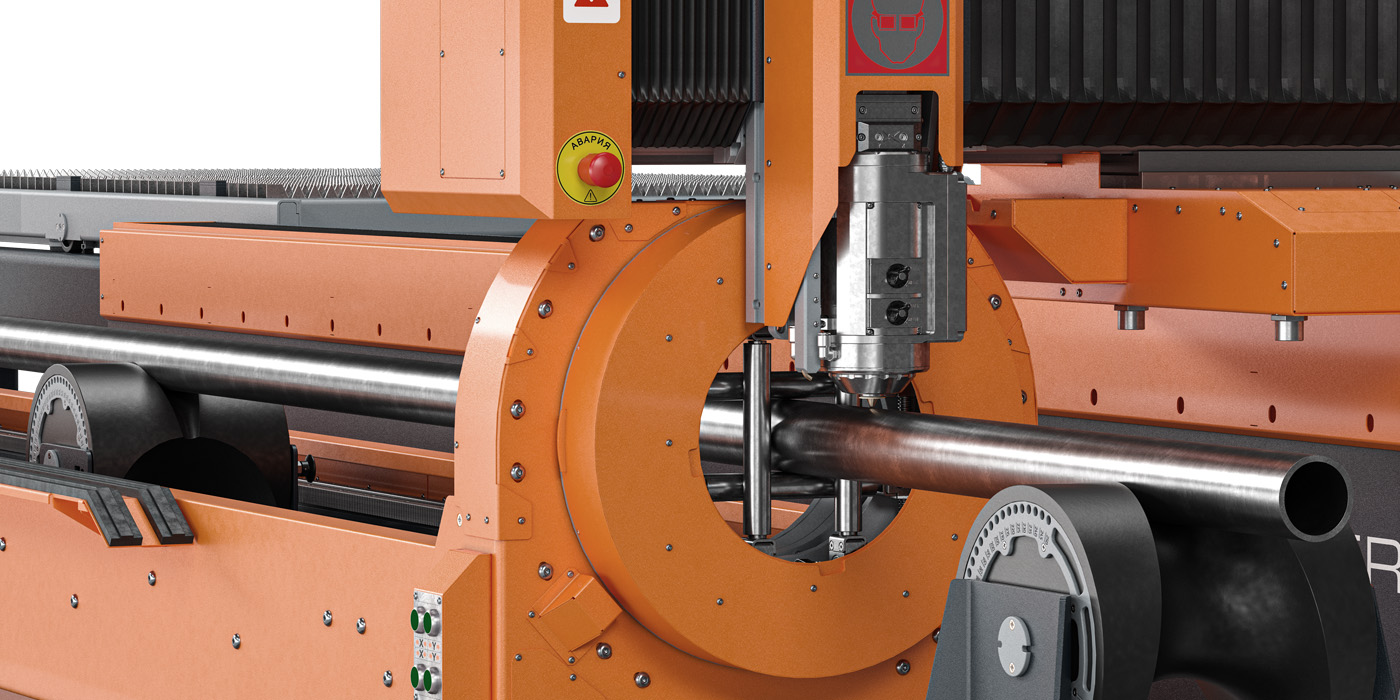

The steady rest is rotated by the linear drive which ensures precise tube rotation and increased cutting quality
Gas exhaust system to remove cutting products out of the tube
Tube cutting up to 6 meters
Universal support for tubes of all types and sizes all types
Quick diameter adjustment of the steady rest
Automatic cam drive of clamping chuck or steady rest
Cutting in the clamping area ensures increased
Removable supporting modules optimize usage of production area
Features of Unimach tube cutting modules
High performance
Laser cutting machines Unimach are optionally equipped with modules for round and rectangular tube cutting, combining processing of flat sheets and precision tube cutting. Simple and intuitive change of cutting operations leads to increased efficiency.

Intuitive control
All Unimach equipment is controlled from one workplace using one software. Simple and user-friendly interface allows for carrying out many repeated operations automatically.

The highest cutting quality
Special function of Unimach software measures the tube defect and corrects received data which leads to precision processing of workpieces with damaged geometry.

Specifications:
Max length, mm: 6000
Max weight, kg: 300
Min size of round tube, mm: Ø20
Max size of round tube, mm: Ø250
Min size of square tube, mm: 20 х 20
Max size of square tube, mm: 175 х 175 (diagonal shall fit in Ø250 mm)
Max size of rectangular tube, mm: diagonal shall fit in Ø250 mm
Rotary axis drive: servo drive + linear drive
The machine’s overall dimensions and weight:
Max dimensions (length x width x height), mm: 7095 х 920 х (950/1070)
Max overall dimensions (including receiving area); length x width x height, mm: 12900 х 920 х (950/1070)
Max weight, kg: 2800
Power usage:
Max power consumption, kW: 5
Accuracy parameters:
Positioning accuracy in all axes, mm/m: ±0.1
Repeatable accuracy along all axes, mm/m: ±0.05
