Model: 148

Glass Bottle
- 48 rinsing nozzles
- Single-phase rinsing process
- Non-returnable glass bottles
8,000 up to 20,000 bottles/h

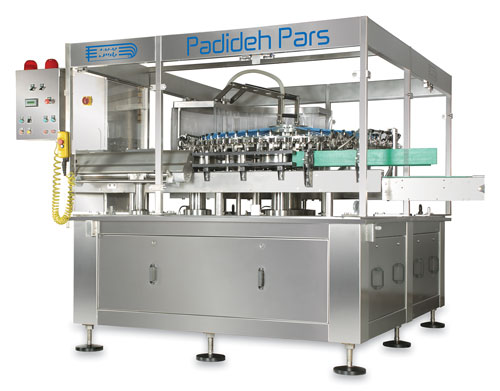

The model 148 is a rotary rinsing machine and it has 48 rinsing nozzles to wash inside the non-returnable glass bottles ranging from 250 cc up to 1000 cc.
The operating speed of the machine can go up to from 8,000 up to 20,000 bottles per hour.
Bottle Type: Glass



The machine has following features:

Fully automatic operation by PLC control.
Colour touch screen panel.
Electronic speed change in main drive motor with frequency inverter.
Error diagnostic system.
Inside of bottles are washed by spraying water in a single-phase rinsing process.
All the surfaces in contact with “water” made of AISI 304 stainless steel.
Polyamide gears to reduce noise and vibration.
Easy changeover of spare parts.
Safety guards made of AISI 304 stainless steel with tempered glass.

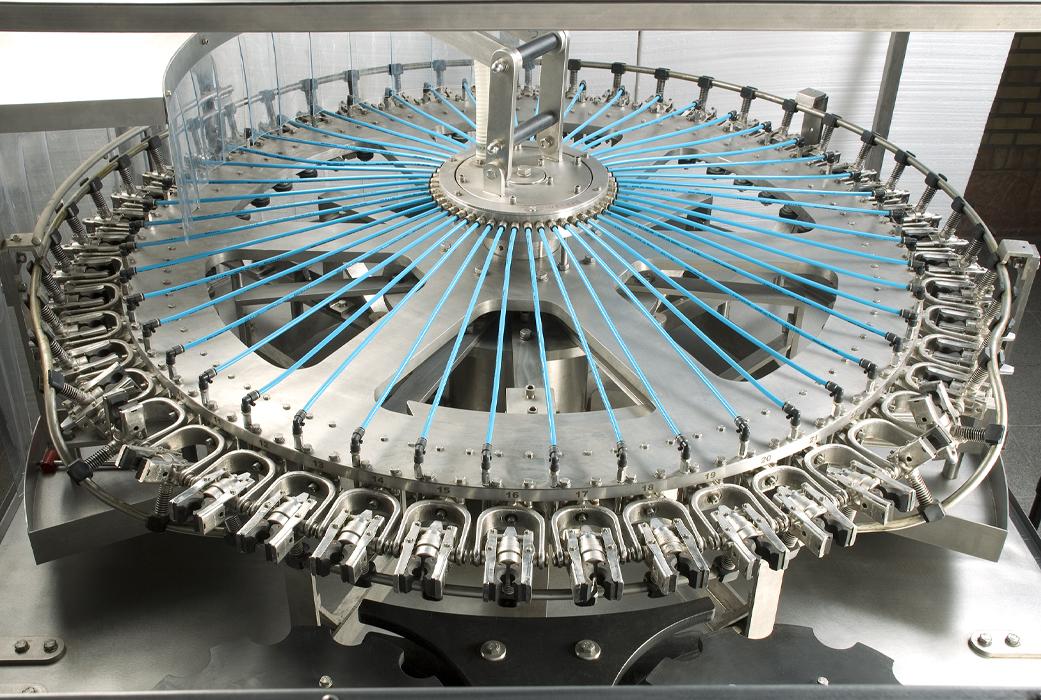

Empty non-returnable glass bottles are transferred into the rotary rinsing section by an infeed worm. The bottles are hold from their neck by means of special grippers and turned upside down (180°). After the water is sprayed into the bottle for a certain period of time, the bottle goes upside down for a little more while to drain and then returns to its normal position.
