Extra Information

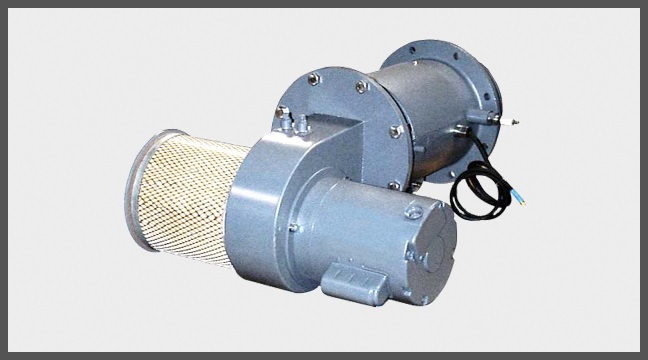

ZFG Gas burners are ideal for lower temperature applications such as baking, drying and curing applications. standard burners include an integral combustion air blower, ignition electrode, flame rod and other features that simplify installation and operation.

FuelGas
P.O.C. VelocityLow Velocity
Turn-down Ratio10:1 for Gas and 5:1 in high excess air and high capacity burners
Capacity50,000 to 2,500,000 kCal/hr
ApplicationsPreheating, Hot Gas Generation, Steam and Hot Water Generation.
RemarksThis burner is mostly used for low temperature combustion chambers or furnaces.

ZFG
50ZFG    50,000 kCal/hr
120ZFG    120,000 kCal/hr
250ZFG    250,000 kCal/hr
500ZFG    500,000 kCal/hr
800ZFG    800,000 kCal/hr
1500ZFG    1,500,000 kCal/hr
2500ZFG    2,500,000 kCal/hr
