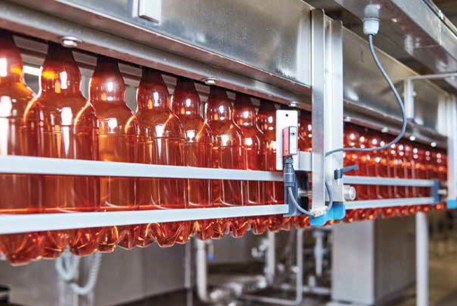

Air conveyor is used for interconnection of blow moulding machine or unscrambler machine into the beginning of the bottling line (Filling Machine). Air conveyor is the most efficient method to transport empty plastic bottles (PET&HDPE) without trouble due to light weight of plastic bottles.
– Transporting Empty Plastic Bottles
– Suitable for PET and HDPE Bottles
5,000 up to 24,000 bottles/hour
This machine has the following features:
The main body is made of 2 mm AISI 304 stainless steel.
If necessary, 90° and S turns made AISI 304 stainless steel will be used according to the layout plan.
Height adjustable support tubes made of AISI 304 stainless steel.
There will be an automatic bottle discarding mechanism against bottle jamming.
Equipped with neck guiding system with low friction coefficient.
Equipped with bottle side guiding system.
Blowing fans made of AISI 304 stainless steel with standard anti-dust filters and AC electrical motors.
Removing bottles from the air conveyor line in case of necessity.
Fully automatic system can be controlled by PLC and sensors.
There is a separate bottle inlet for manual feeding into air conveyors
Ability to control speed and force of blowing fans by electrical inverters.
Ability to install pneumatic jacks to change the sizes of bottle side guides.
Ability to install dry lubricating system.
