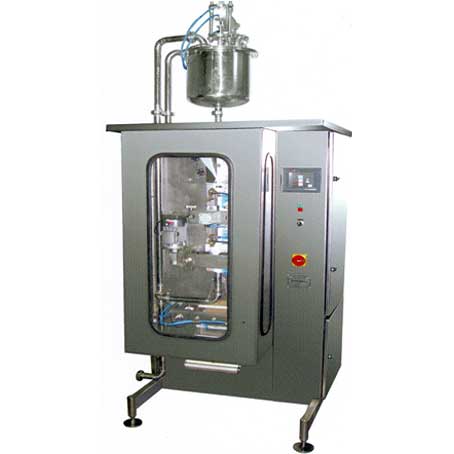

Device specifications:
Packaging items: liquids such as pasteurized milk, buttermilk, school milk, cocoa milk, edible oil, drinking water, latex glue
Packaging capacity: 2000 one-liter packages per hour
Packable volumes: 200 ml to one liter
Sewing jaws system: pneumatic
Machine control system: by PLC
Ability to connect to CIP washing unit
Stainless steel chassis, switchboard cabinet and liquid passageway
Equipment:
Disinfection of polyethylene rolls by UV rays
Electronic eye to adjust the logo
The date of the thermal woman to insert the date of production and expiration
Balance tank for liquid injection
Warning system for finishing the polyethylene roll and stopping the operation of the machine
The warning system for the end of the thermal history ribbon and stopping the device from continuing to work
Primary pre-heating unit for sewing jaws to remove the primary waste of polyethylene rolls
Changing the parameters of the device through the touch screen
Technical Specifications:
Device dimensions: 100 x 100 x 285 cm (length x width x height)
Machine weight: about 500 kg
Power consumption of the device: 2 kilowatts per hour
Compressed air consumption: 150 liters per minute (6 bar pressure)
Water consumption for sewing jaws cooling: 100 liters per hour (15-20 degrees)


Specifications of the consumable roll:
Three layers of polyethylene and one layer of LDPE
The thickness of the used roll: 90-110 micrometers
The width of the used roll: 33 cm
The diameter of the used roll: 30 cm maximum
Weight of one liter bag: 7 grams
Specifications of the new product of this device:
Ecocharge packages are a new model in liquid packaging, especially drinking water and toilet liquid, and its advantages include the following:

Economic efficiency due to the use of containers for frequent filling
Reducing the volume and weight of waste and protecting the environment
Reducing electricity consumption to fill packages
The low weight of each package and finally the reduction of the price
Reducing the cost of transportation and storage
Considering that in the cases of bleach and fabric softener, the concentrates of the above items can be packed in ecochars packages and their dilution is done by the consumer, therefore, transportation and storage costs are reduced.
