Extra Information

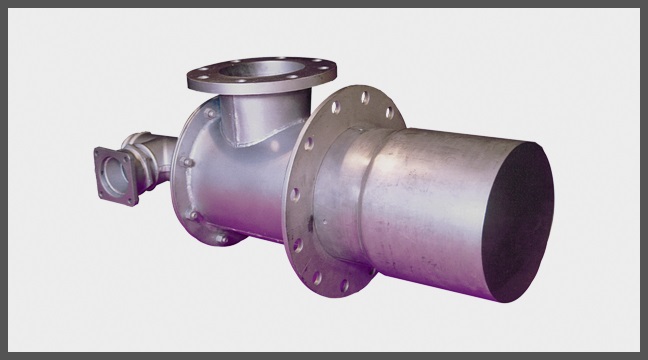

This burner is of the nozzle-mixing type. It is designed to produce a flame with various temperatures. That is why it is used in some cases as an excess-air burner. The maximum heat input of this type of burner is 1,600,000 Kcal/hr, which is produced by maximum air and gas pressure. The burner head is designed to work within the pressurized or vacuum combustion chamber.
FuelGas
P.O.C. VelocityLow Velocity
Turn-down Ratio10:1 for Gas
CapacityUp to 1,600,000 kCal/hr
ApplicationsPreheating, Hot Gas Generation, Steam and Hot Water Generation.
RemarksThis burner is mostly used for low temperature combustion chambers or furnaces.
1600MBG1,600,000 kCal/hr
